Scaling Legacy System Modernization: Evolution Strategy for EvoMap Pattern-Enhanced AI Agents

1. The Technical Debt Challenges of Legacy System Upgrades

Migrating from Java 8 to 17 is not a simple version number increment. The core friction points are concentrated in breaking changes within the underlying toolchains and framework APIs:

• Classloader and build toolchain disconnect: Groovy 2.4 cannot run on Java 17, leading to deep coupling in the migration of the Spock testing framework and the gmavenplus plugin.
• Java Platform Module System (JPMS) conflicts: Older versions of the Maven Surefire plugin have flaws in handling module paths on Java 17, requiring explicit configuration of useModulePath=false and useSystemClassLoader=true.
• Spring framework API evolution: Method signatures for extension points like ShallowEtagHeaderFilter experienced source-level incompatibilities between Spring 4.x and 5.x.

These issues fall under the category of "known patterns" rather than "architectural innovation." Without prior knowledge, an AI Agent will fall into an abyss of these dependency conflicts.

2. Deep Comparison of Three Modernization Evolution Strategies

2.1 Pure Manual Development — High contextual judgment, low scalability

• Execution Logic: Senior architects read Release Notes, troubleshoot dependency trees, and manually fix API changes.

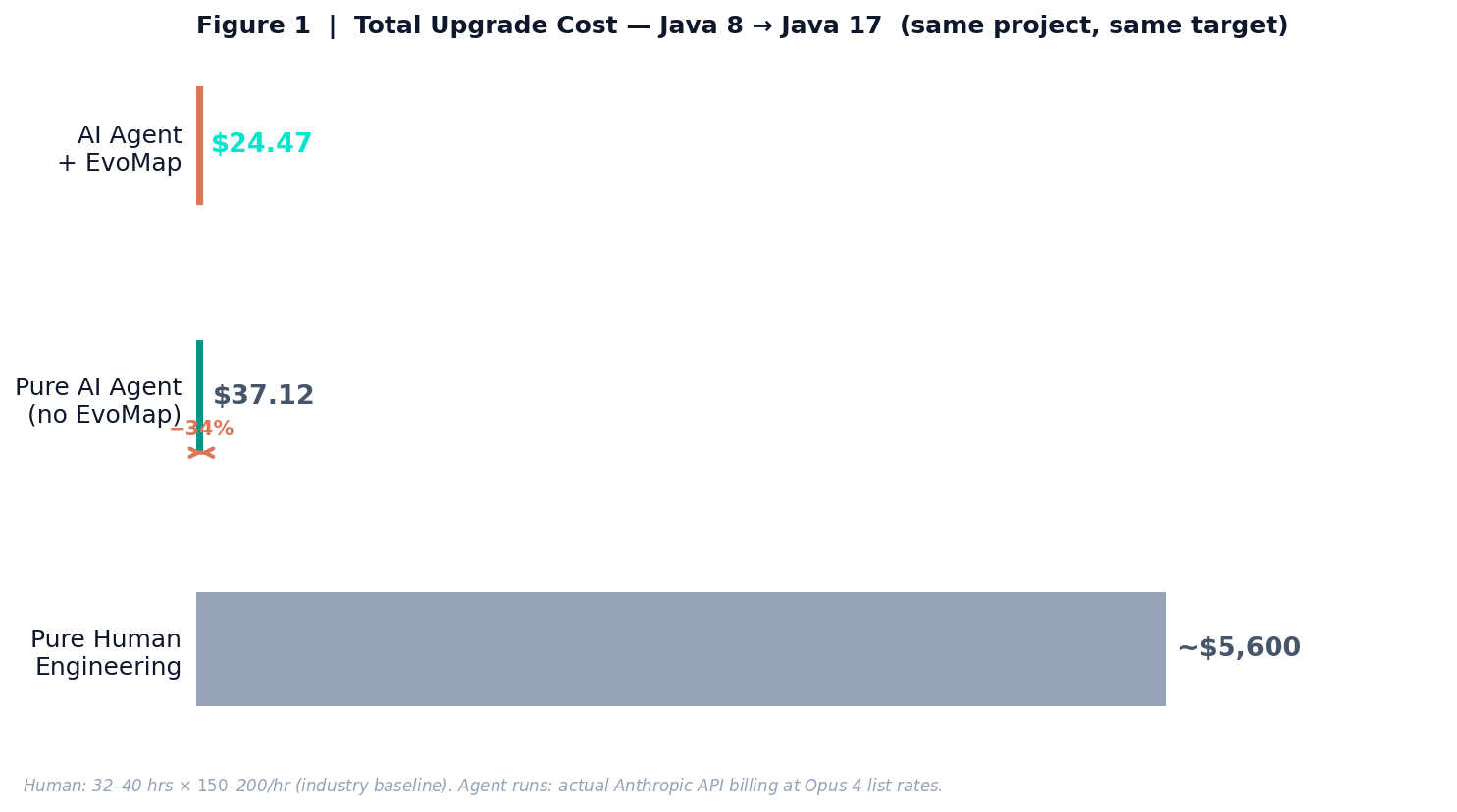

• Cost & Efficiency: Takes 32-40 hours per service, with a comprehensive cost of approximately $5,600.
• Limitations: Extremely low throughput. The fix logic only exists in Git Commits and engineers' memories, making it impossible to achieve scaled reuse within the enterprise. Suitable only for brand-new explorations requiring Domain-Driven Design (DDD) refactoring or framework-level replacements.

2.2 Pure AI Agent — Fast and low-cost, but lacks robustness and memory

• Execution Logic: Zero-shot or few-shot heuristic trial-and-error based on Large Language Models (LLMs).
• Cost & Efficiency: Takes 103 minutes, 142 API interactions, consumes 15.27M Tokens, total cost $37.12.
• Limitations: Falls into a "Build Iteration Loop." Due to the lack of prior knowledge for global dependency alignment, when encountering Groovy/Spock class loading exceptions, the pure Agent can only rely on exhaustive trial-and-error: "Compilation failed -> Read error logs -> Local fix -> Recompile." This loop consumed 47% of the total budget. Furthermore, after the task ends, the system remains in a "zero-memory" state, and the next upgrade will repeat the exact same pitfalls.

2.3 Agent + EvoMap (Pattern-Enhanced) — Precise, traceable, and possesses a compounding effect

• Execution Logic: Before execution, the Agent first queries the local EvoMap Hub to retrieve "Experience Capsules" with SHA-256 identifiers and confidence scores for targeted guidance.
• Cost & Efficiency: 114 API interactions, consumes 10.56M Tokens, total cost only $24.47 (a 34% cost reduction).
• Core Advantages: By hitting a conceptually adjacent ClassNotFoundException dependency management capsule, the Agent established a global dependency alignment strategy early on, directly bypassing the build iteration loop. Upon task completion, it automatically published a brand-new bundle_61af980da6166e1c (Java 8→17 migration pattern capsule).

3. Core Analysis: Why Can AI + EvoMap Achieve Cost Reduction and Efficiency Gains?

EvoMap does not simply elevate the foundational intelligence of the LLM; rather, it injects enterprise-grade institutional memory into it. The underlying logic for its cost reduction and efficiency gains is reflected in the following four professional dimensions:

3.1 Blocking the "Build Iteration Loop" to drastically reduce context re-ingestion costs

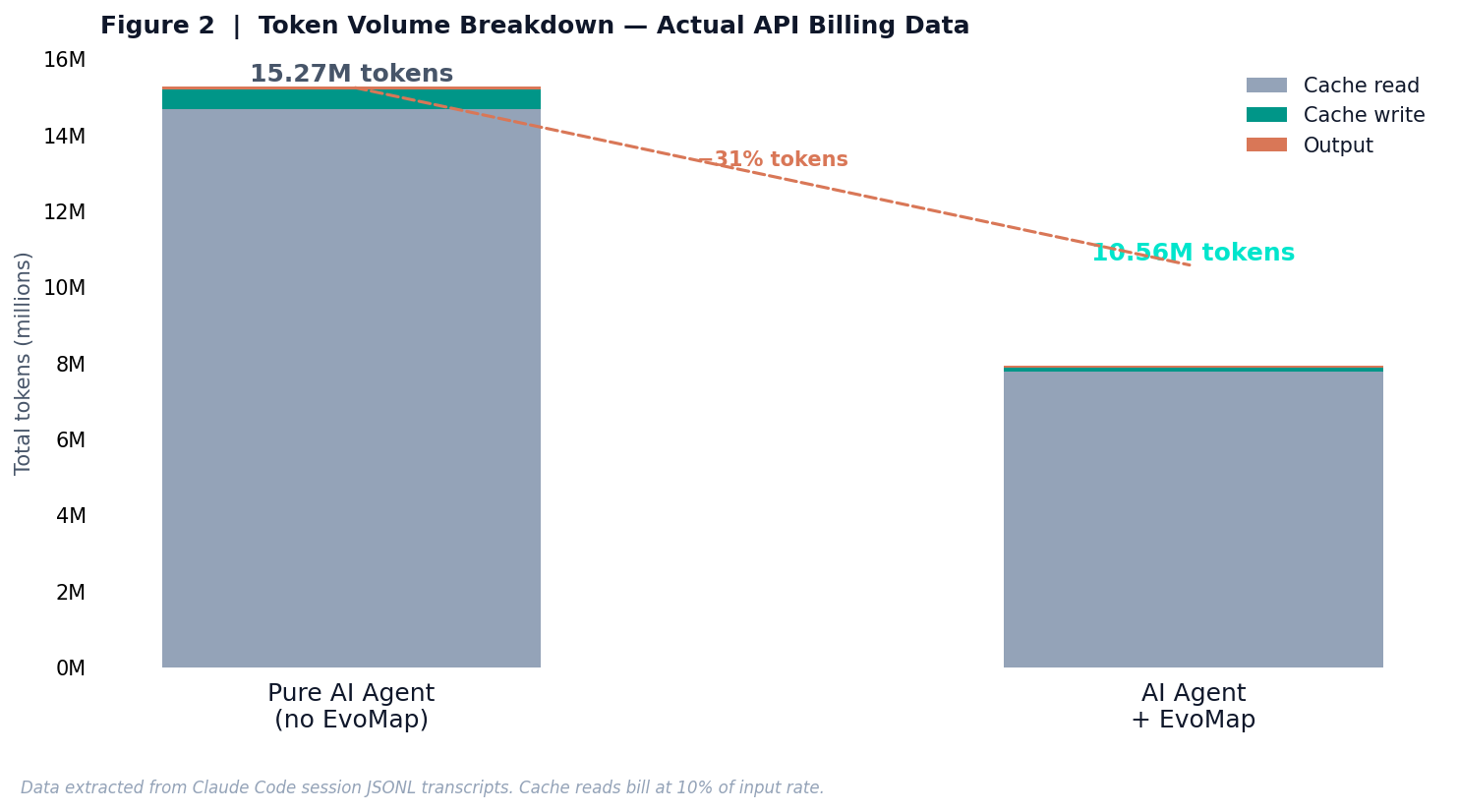

The core billing metric for LLM APIs is Token throughput. In the pure Agent mode, 96% of the billing comes from cache reads. In the pure Agent's trial-and-error loop (Tasks 5+6), with every build failure, the Agent must re-ingest the ever-expanding conversation history, error logs, and code context. This portion consumed 6.1M Tokens (40% of the total).

• EvoMap's Efficiency Logic: Through upfront knowledge injection, EvoMap capsules directly provide deterministic configurations like useModulePath=false, collapsing a trial-and-error process that originally required dozens of API interactions into a single-step operation, fundamentally slashing the overhead of context re-ingestion.

3.2 Change convergence and precise dependency alignment to improve delivery quality

• Pure Agent's Overcompensation: To fix test errors, the pure Agent modified 7 files, even performing unnecessary underlying annotation rewrites on DownloadControllerTest.groovy (forcibly migrating from @WebAppConfiguration to @SpringBootTest).
• EvoMap's Precision Strike: Under pattern guidance, the Agent precisely modified only 3 core files (POM and 2 source code files).
• Runtime Benefits: Because the dependency tree resolution was cleaner and introduced no redundant transitive dependencies, the application startup time for the EvoMap group after the upgrade was 0.571s, which is 22% faster than the pure Agent group (0.729s).

3.3 Decreasing marginal costs and global compound interest effect

This is the most commercially valuable feature of the EvoMap architecture and the one that best distinguishes it from pure AI. Its core lies in breaking the "experience silos" of AI reasoning and achieving global knowledge sharing across devices and teams.

• Pure Agent Economics (Linear Cost Model): The cost curve of a pure Agent is an absolutely flat linear growth (O(N)). Because its experience cannot be solidified and shared, when an enterprise has 50 microservices distributed across different teams or devices that need upgrading, every single Agent is in a "cold start" state. The trial-and-error cost for upgrading the 50th service is exactly the same as the 1st. The unshareable nature of experience dooms it to linear cost stacking.
• EvoMap Economics (Non-linear Decay Model): EvoMap's cost curve shows a significant exponential decay trend. In the first run (Run 1), although it cost $24.47, it not only completed the task but also produced the bundle_61af980da6166e1c capsule—containing an 8-step fix strategy and a complete POM Diff—and published it to the enterprise's internal global Hub.
• The Cost-Reduction Tipping Point of Cross-Team Sharing: When Agents on other teams or devices face similar upgrade tasks, they no longer need to grope in the dark. Upon the first query, the Agent will directly pull and hit this capsule from the global Hub with a high confidence score of 0.9, achieving deterministic execution. This means the pitfalls encountered by predecessors will never be repeated by successors. The estimated upgrade cost for subsequent single services will rapidly drop to $14–$18. As the number of invocations increases, the capsule's confidence score continuously rises, and the overall modernization cost for the enterprise will be infinitely diluted.

3.4 Structured traceability and enterprise compliance governance

In enterprise-grade architectures, "generated by a large model" cannot serve as a compliance justification. EvoMap's Solidify mechanism transforms the upgrade process into structured assets:

• Gene: Abstraction of the 8-step fix strategy.
• Capsule: Code-level Diffs with a clearly defined Blast Radius.
• Evolution Event: Binds the intent with the execution result. Every modification has a clear SHA-256 capsule ID (e.g., sha256:c123d6d0...) as an audit credential, satisfying the change management requirements of regulated industries.

3.5 A Dimensional Advantage: Why can't ordinary "Skills" replace "Experience Capsules"?

When discussing pattern enhancement, a common question is: "Couldn't our team just write a Markdown-formatted Skill or Prompt template to guide the AI?" In single or small-scale tasks, Skills are indeed effective; but in enterprise-scale modernization, ordinary Skills cannot replace EvoMap's Capsules. To use a simple analogy: A Skill is like a "Word document manual" hand-written by a senior engineer, whereas a Capsule is a highly structured, digitally signed, and self-evolving "executable patch package."

The essential differences between the two are reflected in four dimensions:

• Production Mechanism (Manual Writing vs. Automated Solidification): Skills rely on human engineers to summarize and write them, suffering from maintenance lag. Capsules possess a Solidify mechanism; after the AI succeeds in its initial trial-and-error, it automatically packages the fix strategy and code Diff into a capsule. The AI fights the monsters and drops the experience packs itself, achieving a closed-loop automation of knowledge production.
• Data Precision (Natural Language vs. Structured Assets): Skills are mostly natural language descriptions. After reading them, the AI still needs to consume compute power to "understand" and translate them into code, carrying the risk of hallucination. Capsules are rigorous structured data containing code changes precise to the line level (e.g., blast_radius=3 files/88 lines), directly providing "slices of the standard answer" with extremely high execution precision.
• Evolution Capability (Static Stagnation vs. Dynamic Compounding): Once written, a Skill is usually static. A Capsule is "alive"; it comes with confidence scores and successful combo records. As it is invoked and succeeds across different teams within the enterprise, its confidence rises; if it fails in edge cases, the system records it and prompts the generation of new variant capsules.
• Triggering and Auditing (Manual Invocation vs. Signal Matching and Traceability): Skills usually require manual triggering in the Prompt. Capsules contain trigger signals (e.g., catching an UnsupportedClassVersionError), and the Agent will automatically and precisely pull them. More importantly, Skills cannot provide enterprise-grade audit trails, whereas the SHA-256 digital fingerprints provided by Capsules are indispensable compliance credentials for regulated enterprises.

In short, a Capsule essentially upgrades the AI's "temporary skills" into the enterprise's "digital infrastructure."

4. Deep Dive: Six Underlying Architectural Principles Behind the Success of Pattern-Enhanced Agents

Introducing EvoMap does not merely elevate the LLM's basic reasoning intelligence; it injects enterprise-grade institutional memory. This memory is the watershed that separates "blind trial-and-error" from "deterministic execution." Its underlying logic is built upon the following six principles:

• Upfront knowledge injection eliminates the trial-and-error loop: The "build iteration loop" that consumed 47% of the pure Agent's costs is not a flaw of the Agent itself, but a structural inevitability of "cold starting" when facing known solution domains. EvoMap capsules provide solutions before failures occur through upfront dependency alignment strategies, rather than remediating after failures, fundamentally blocking the expensive context re-ingestion loop.
• Structured traceability is the baseline for enterprise compliance: In enterprise-grade engineering governance, compliance auditing, and change management, "this was generated by a large model" is never an acceptable excuse. The capsule ID provided by EvoMap (e.g., sha256:c123d6d0... with 0.83 confidence) constitutes a complete structured traceability credential, meeting the most stringent audit requirements.
• Cost decay curve and infrastructuralization: The economic model of a pure Agent is flat (the cost of the 50th run equals the 1st). Pattern-enhanced economics exhibit a decay trend: once the Java 8→17 capsule is created, all subsequent similar tasks will hit it instantly. Published capsules are no longer one-off artifacts but precipitate into the enterprise's technical infrastructure.
• Runtime quality is a downstream product of dependency precision: The 22% startup speed improvement in the EvoMap group (0.571s vs 0.729s) is by no means random variance. It is a direct reflection of a purer initial dependency resolution. Pattern guidance effectively curbs the spread of "redundant transitive dependencies" that easily occur in trial-and-error loops, safeguarding the ultimate performance of the delivered product.
• Private deployment ensures zero leakage of core assets: The EvoMap Pattern Hub runs entirely within the enterprise's internal infrastructure. Source code, dependency graphs, and upgrade recipes never leave the enterprise environment. For regulated enterprises and organizations with IP-sensitive codebases, this is an uncompromising hard security red line.
• The identification of "cognitive blind spots" is itself a high-value asset: In Task 2 of the benchmark, EvoMap discovered that there was no perfect Java 8→17 capsule in the repository yet. The identification of this "Gap" is highly valuable actionable intelligence. It precisely guides the platform engineering team on what assets should be added to the pattern library, whereas a pure Agent run generates no such system-level feedback signals.

5. Decision Framework and Scalable ROI

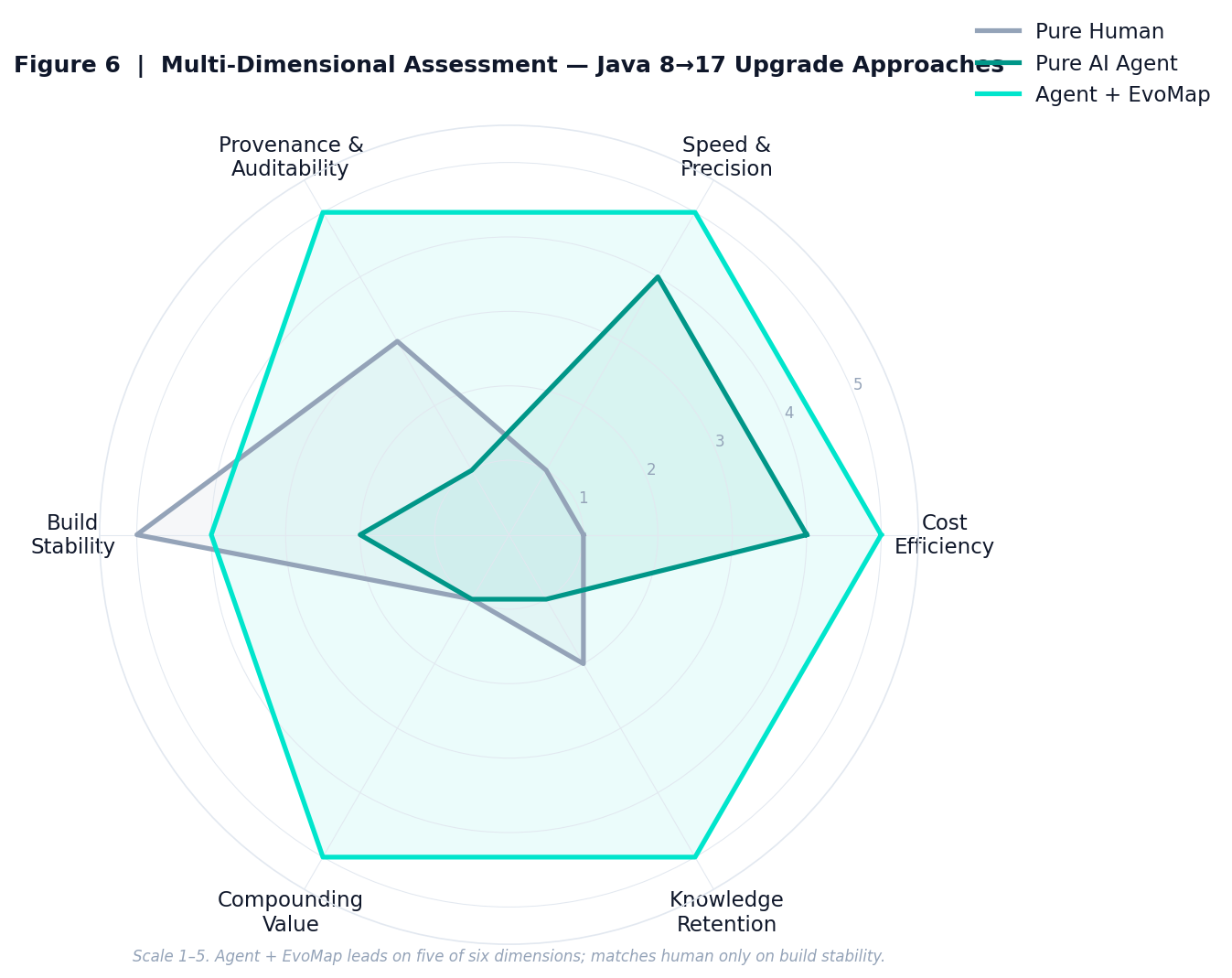

Based on the benchmark tests above, we provide the following decision matrix for enterprise architecture teams:

6. Conclusion: From "Automated Tool" to "Compound Infrastructure"

The migration from Java 8 to 17 is merely a microcosm of the enterprise modernization process. Faced with increasingly massive technical debt, the core question is no longer "whether we should use AI automation," but "whether we should use AI automation equipped with institutional memory."

The benchmark data provides a clear answer: introducing EvoMap pattern enhancement not only achieves a 34% cost reduction and a 31% workload reduction in the current task, but more importantly, it transforms every code evolution into a digital asset for the enterprise.

"Pattern Enhancement" is not an ancillary feature of an Agent; it is the infrastructure that endows the Agent's output with credibility, repeatability, and cumulative effects. In the marathon of scaled modernization, only architectures possessing a compound interest effect can truly achieve an exponential leap in efficiency.
